Breaking the AI Energy Wall: Power Block and 3D Miniaturization Solutions

Speaker: Dr. Li-Cheng Shen, Director, Miniaturization Competence Center (MCC), USI

Recently at the IMPACT 2025 conference, Dr. Li Cheng Shen of USI was invited to be the keynote speaker at the IMPACT 2025, sharing our latest technology roadmap for High-Performance Computing (HPC). Facing the immense hunger for compute power in AI servers, we believe that "Power Delivery" is no longer a supporting actor but the critical fuel determining the speed of AI development. This article will provide an in-depth analysis of how USI overcome physical space limitations and achieve the high-performance power solutions required for next-generation AI infrastructure through advanced modularization and miniaturization process technologies.

Why Has "Power Delivery" Become the Invisible Ceiling for AI Development?

In the era of Generative AI, demand for compute power is exploding exponentially, leading to a sharp rise in the Thermal Design Power (TDP) of chips. While many focus on computing speed, for the industry, understanding "Energy Eagerness" is the first step in grasping hardware trends. According to our analysis, the power consumption trends for mainstream GPUs are as follows:

Nvidia Architecture: From the H100’s 700W (SXM) to the next-generation Blackwell (B200) at 1,200W, and the future Rubin platform expected to exceed 2,000W, power demand has multiplied in just a few years .
AMD & Intel Architectures: A similarly steep upward curve is evident, with the AMD MI355X projected to reach 1,400W and the Intel Gaudi 3 increasing significantly to 900W .

The Core Problem: Given the fixed dimensions (X, Y, Z axes) of data center racks, how do we fit in doubled power requirements? It’s like squeezing the functionality of a car into the size of a smartphone, requiring extreme performance while being constrained by limited space.

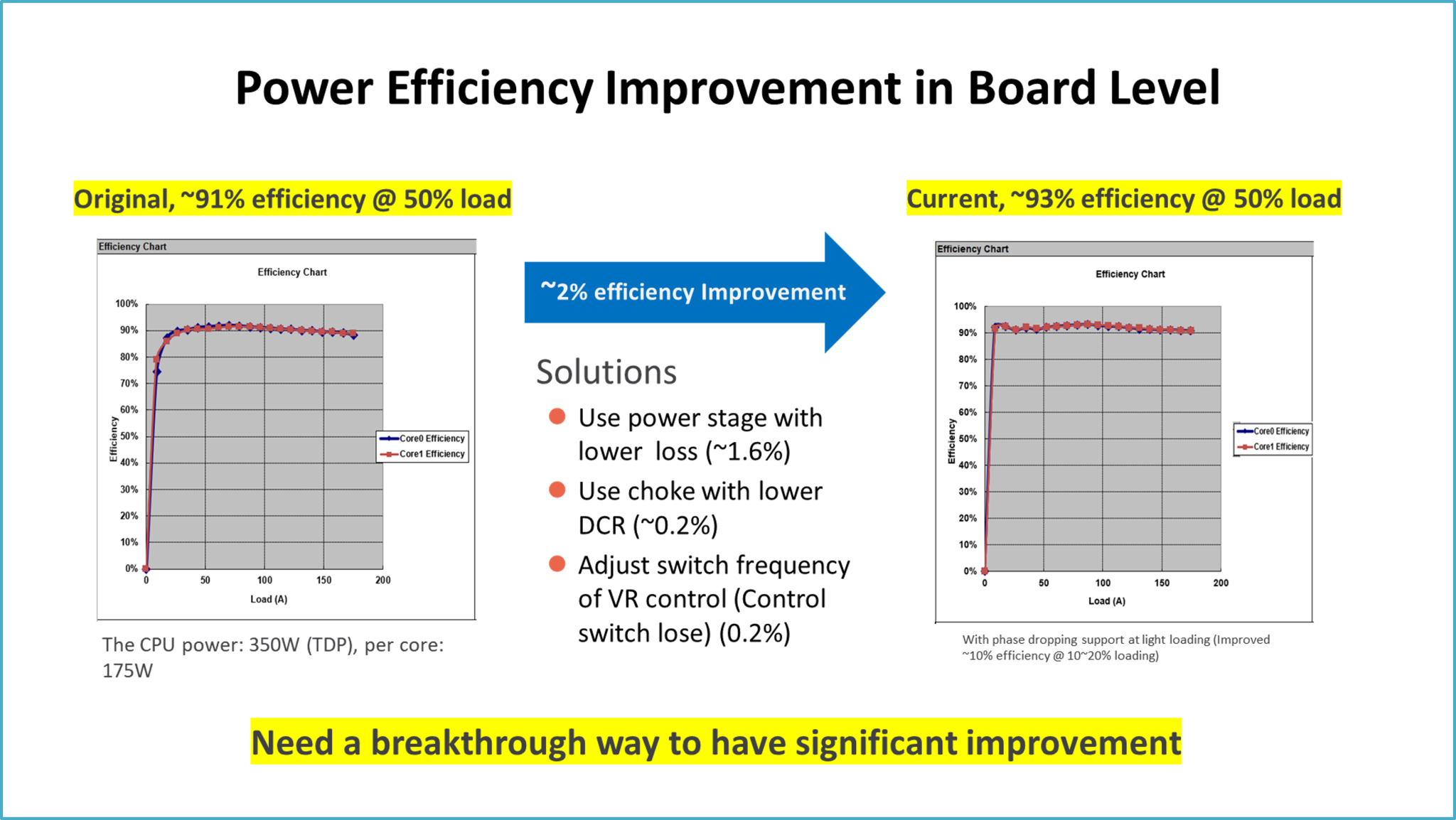

Fig 1. Conventional Power Efficiency Improvement in Board Level

Traditionally, swapping in lower-loss components (such as Power Stages or inductors) only yields an efficiency gain of about 2%. Facing doubled power demands, we must seek breakthrough innovations to have significant improvement.

How to Implement "Vertical Power Delivery"

To meet the demands of space and efficiency simultaneously, the shift in power architecture from lateral to vertical has become an industry consensus. USI's R&D focuses on leveraging packaging and modularization technologies to facilitate the practical implementation of this architectural transformation.

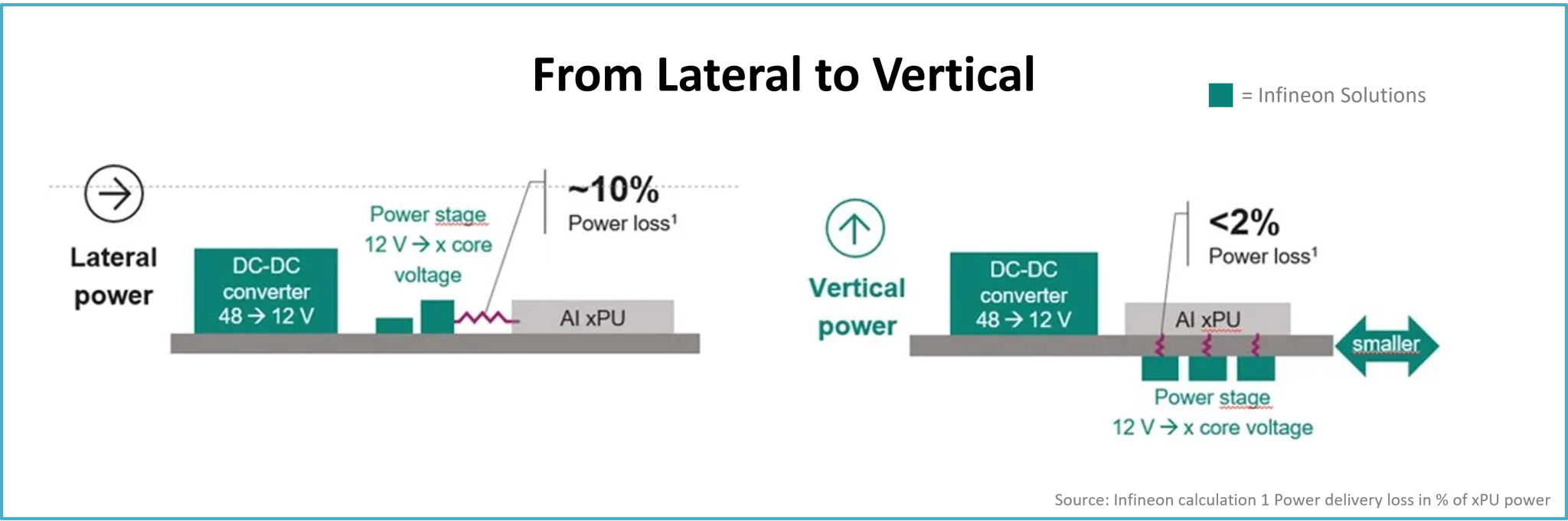

Fig 2. From Lateral to Vertical

Compared to traditional Side-by-Side layouts, the implementation of the vertical power delivery architecture achieves the following breakthroughs (data based on ASE test results):

Drastically Reduced Transmission Loss: By significantly shortening the current transmission path, Transmission Loss drops from the traditional 12% to approximately 6%, representing a reduction of over 50%.
Significantly Increased Power Density: Through 3D stacking and embedded technologies, power density improves from 0.4 A/mm² to 0.6 A/mm², increasing power delivery capacity per unit area by 50%.

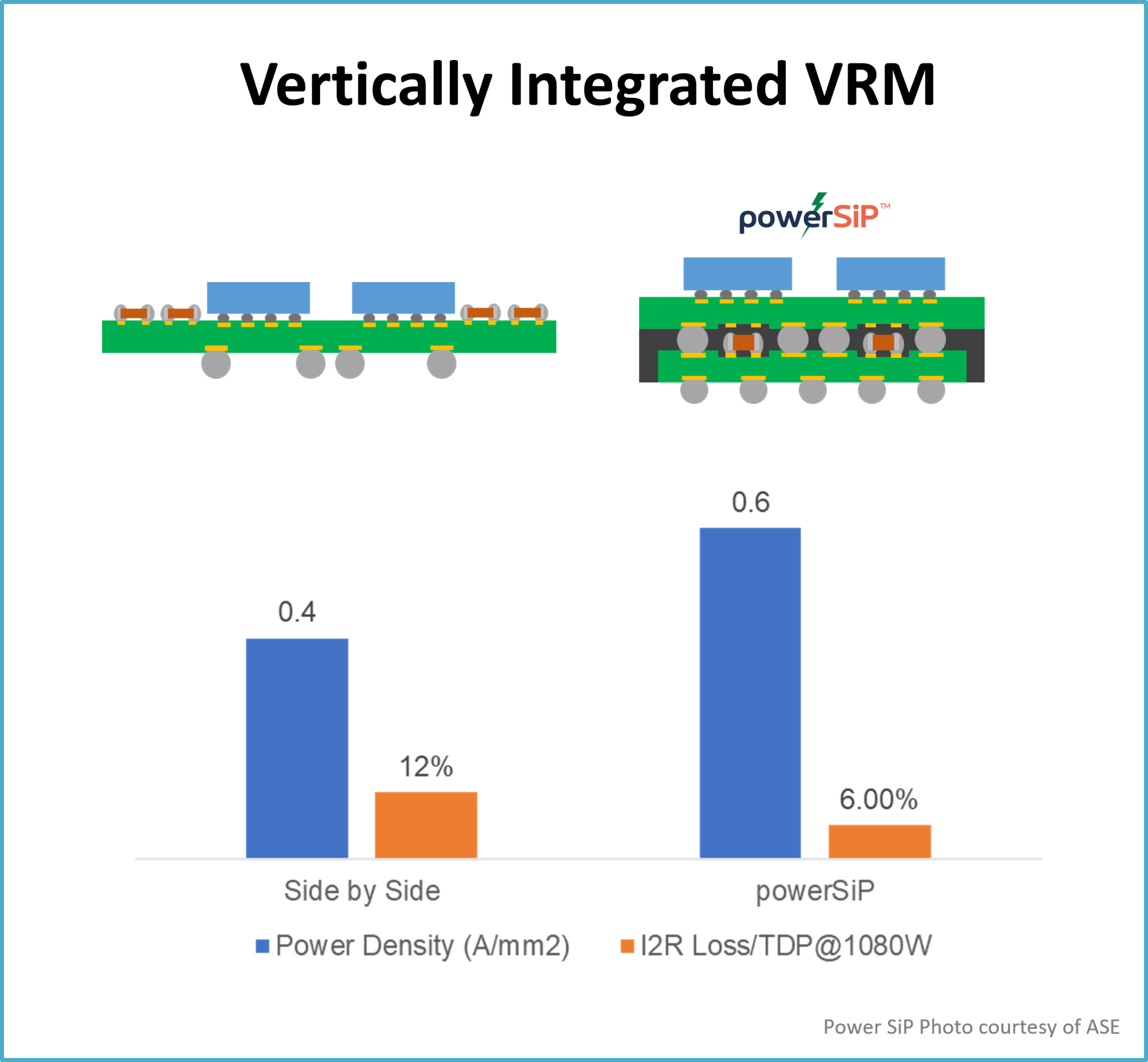

Fig. 3 Vertically Integrated VRM

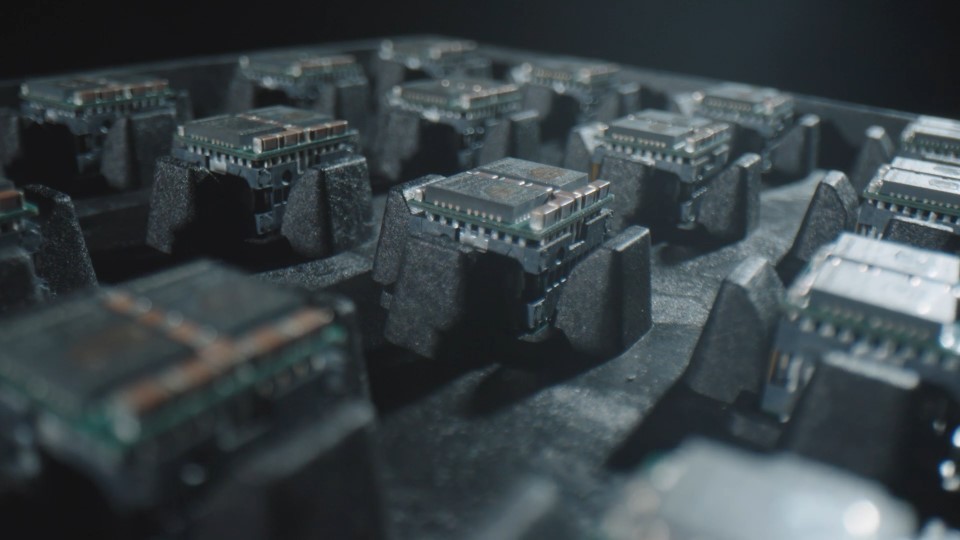

Core Technology Analysis: Power Block Modulization Technology

At the technical implementation level, USI’s strategic core lies in the structural optimization and manufacturing innovation of the Power Block. We go beyond assembly, diving deep into the internal structural design of components to integrate the inductor, capacitor, MOSFET, and driver into a single high-density module.

Learn More: Event |【Wide-Bandgap Semiconductor Technology Forum】: How Modularization and Miniaturization Revolutionize Server Power Efficiency

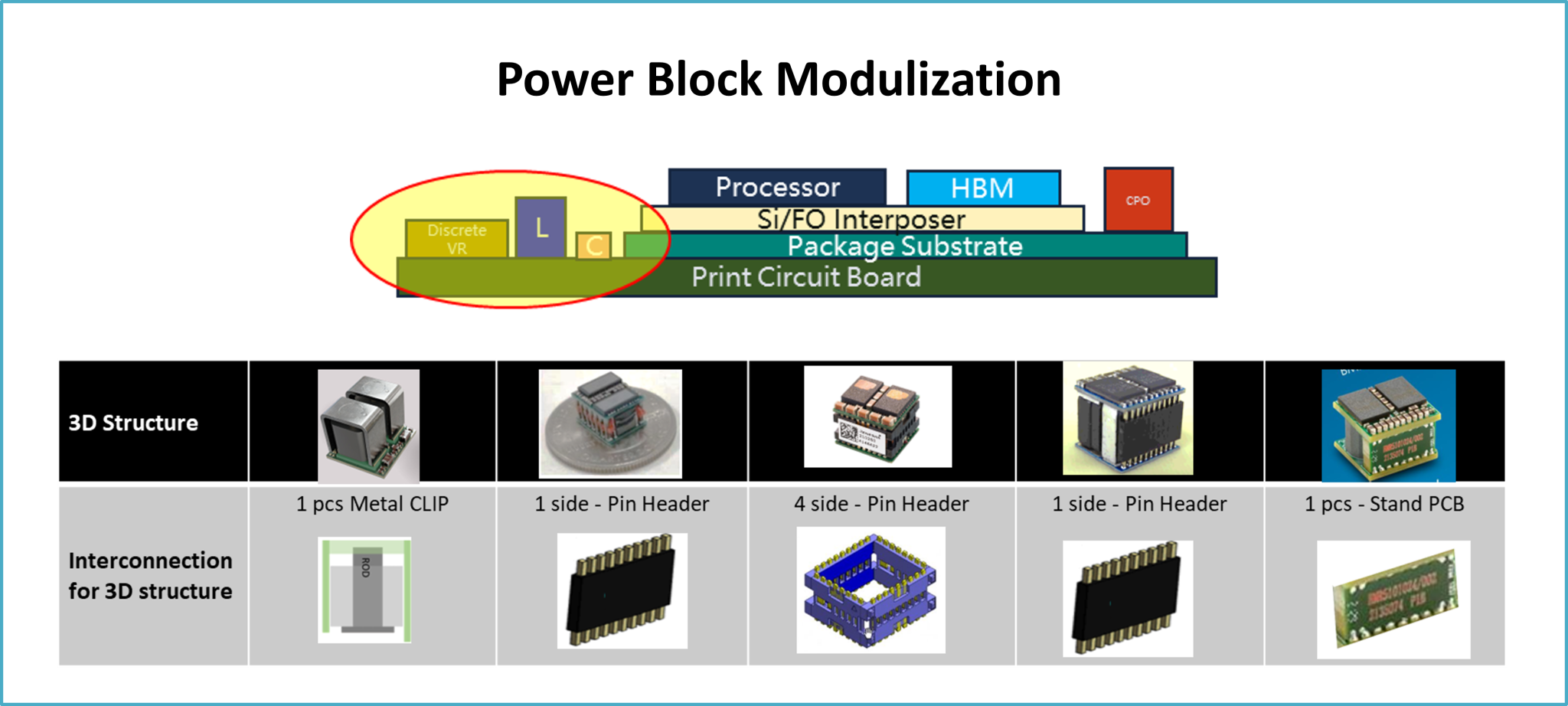

Fig 4. Power Block Modulization

Challenges and Practices in Miniaturization: To accommodate denser server configurations, module thickness must be continuously compressed. From 8mm in the past to 5mm, USI is currently challenging the limit of 4mm.

3D Structure Optimization: We utilize Metal Clips and Pin Headers to establish vertical interconnections, replacing space-consuming traditional wiring .
Thermal & Grounding Management: Addressing the grounding and thermal requirements of PMIC QFN packages, we employ chip-embedded or low void bonding technology to ensure thermal stability under high-current operation.

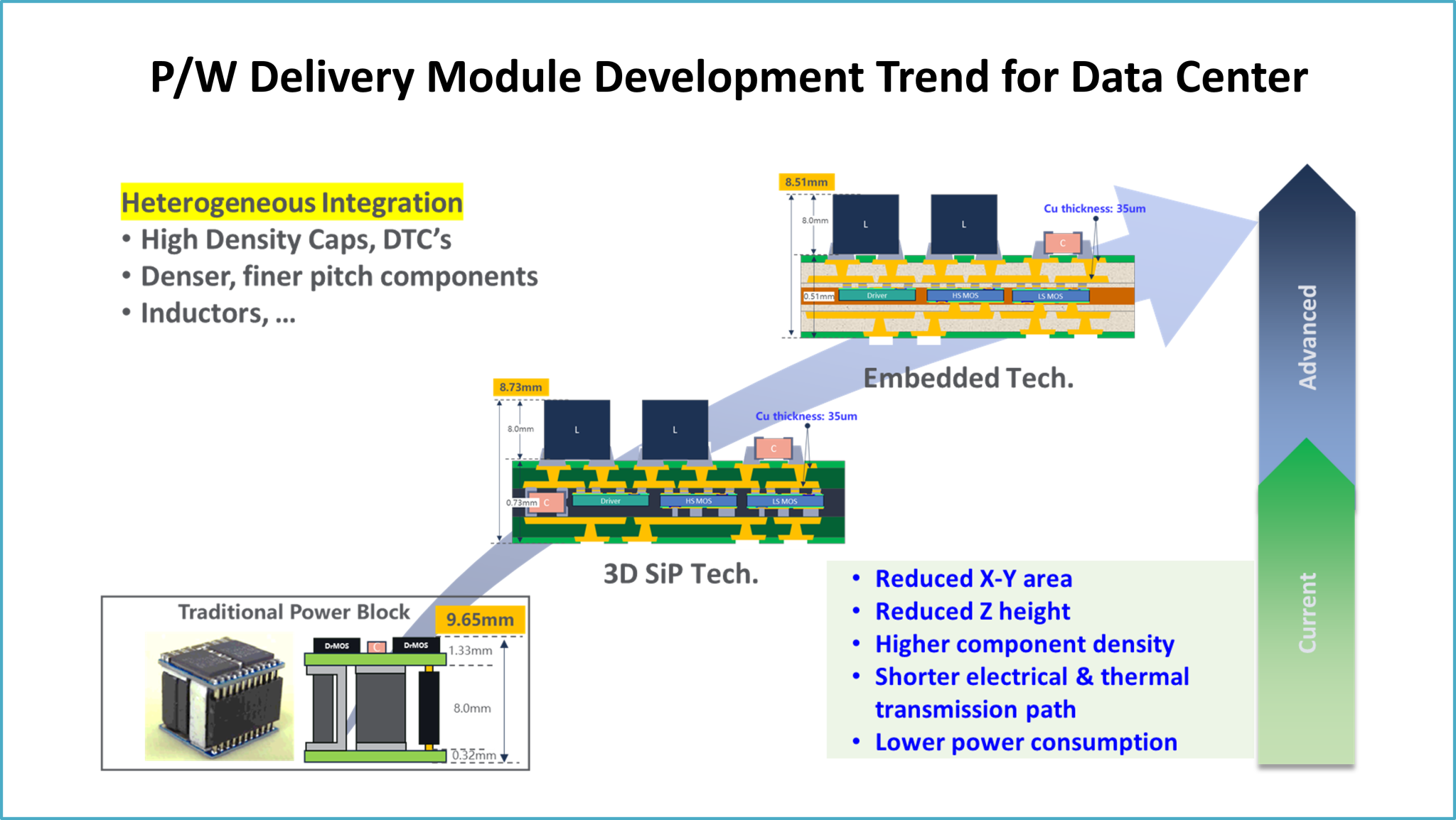

Fig 5. P/W Delivery Module Development Trend for Data Center_Source: ASE Holdings

Future Trend Forecast: 800V HVDC and IVR Integration

1. Shifting to 800V High Voltage DC (HVDC)

For the future architecture of data centers, USI and ASE Holdings are working together to develop the next phase of our technology road-map. As single-rack power consumption moves from 100kW toward 1MW, traditional 48V distribution architectures face immense challenges. We are actively developing power modules that support 800V DC.

Physics Principle: According to P = IV and P_loss = I²R, increasing voltage significantly reduces current, thereby drastically cutting thermal loss during transmission.
Weight Reduction Advantage: Lower current allows the use of thinner copper cables, solving the structural issue of excessive weight in current AI server racks caused by massive, thick copper cabling .

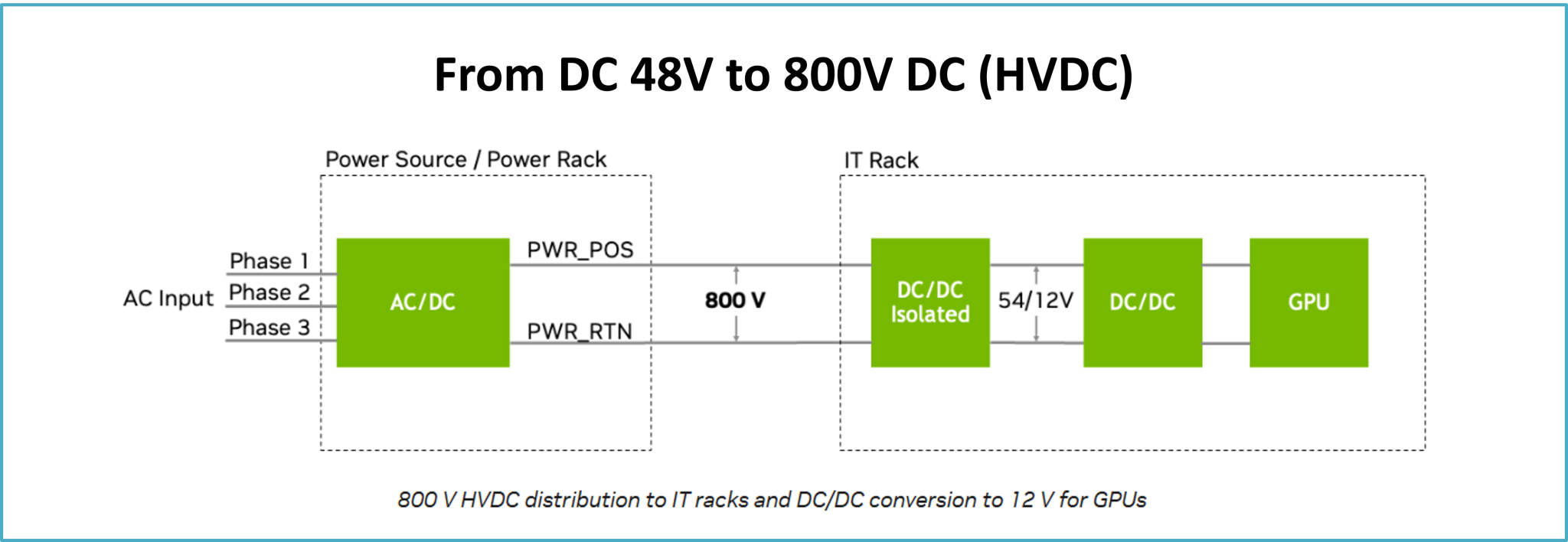

Fig 6. From DC 48V to 800V DC

2. Integrated Voltage Regulator (IVR)

Looking further into the future, power delivery will be further integrated into the silicon interposer (CoWoS) within the chip. As a leader in modularization technology, USI acts as the critical bridge connecting "board-level power" and "chip-level power (IVR)," offering a complete conversion solution from 48V down to 1V .

Breaking the Energy Efficiency Wall with USI

Dr. Shen’s presentation effectively positioned USI (Universal Scientific Industrial / Ring Universal Electronics) not merely as an assembler, but as a co-developer of critical AI infrastructure. We, USI, possess the industry's most comprehensive "Toolbox," covering end-to-end capabilities from chip packaging and module design to system assembly, including a number of key technical advantages:

End-to-End Integration Capability: Unlike competitors who focus on single stages, USI spans the entire value chain: from system packaging and module design to system integration. This allows USI to optimize power delivery holistically, solving problems at the module level that resolve constraints at the system level.
Leadership in Miniaturization (3D SiP): USI has proven expertise in embedded passives, and advanced molding.
Thermal & Signal Integrity Expertise: By mastering the "power block," USI is better able to provide solutions to the dual challenges of removing heat from increasingly dense clusters and ensuring clean power delivery to sensitive processors.

In conclusion, as AI chips grow larger and more powerful, the components supporting them must get smaller, smarter, and more integrated. USI stands at the forefront of this "Miniaturization for High Performance" revolution.
